THERMAL SYSTEMS

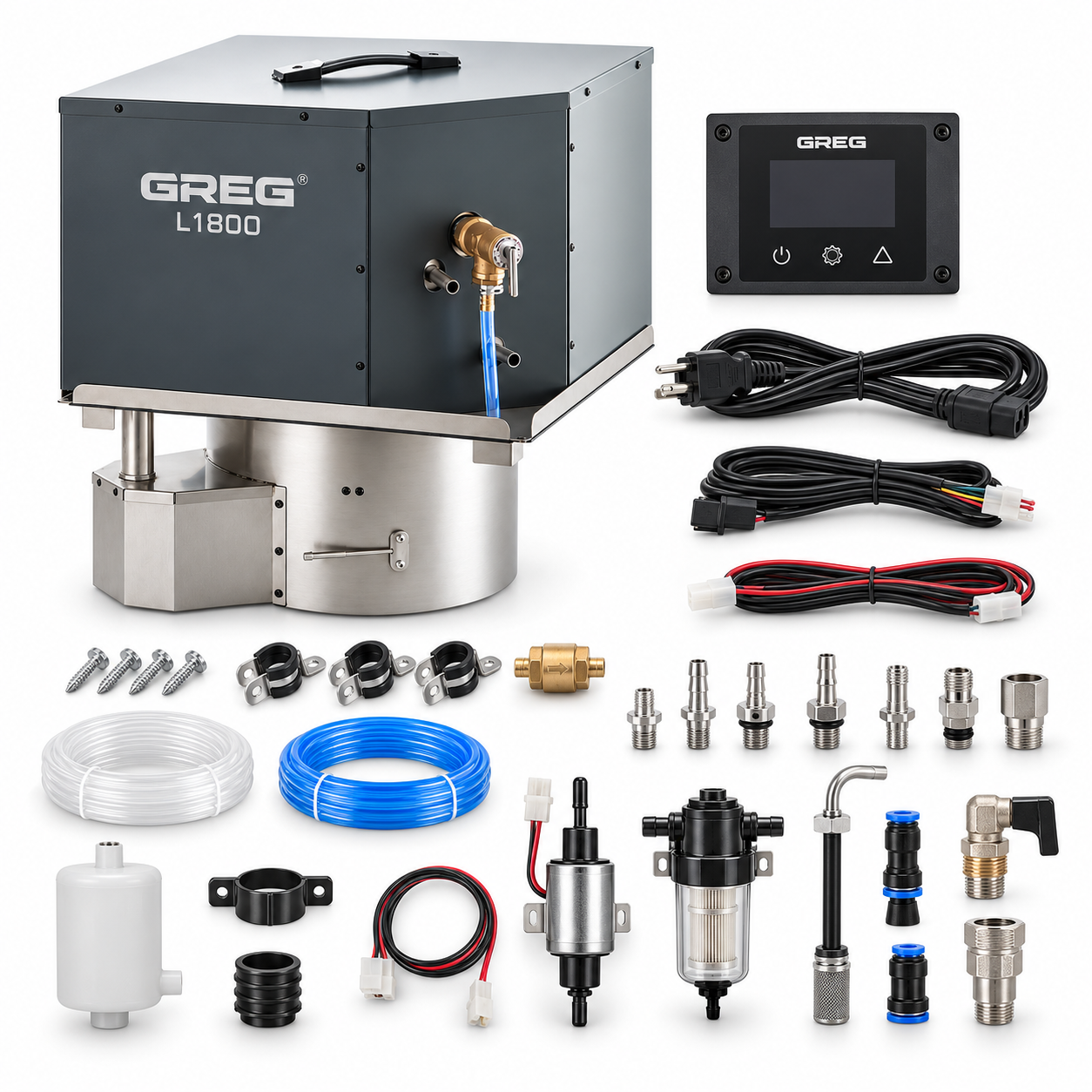

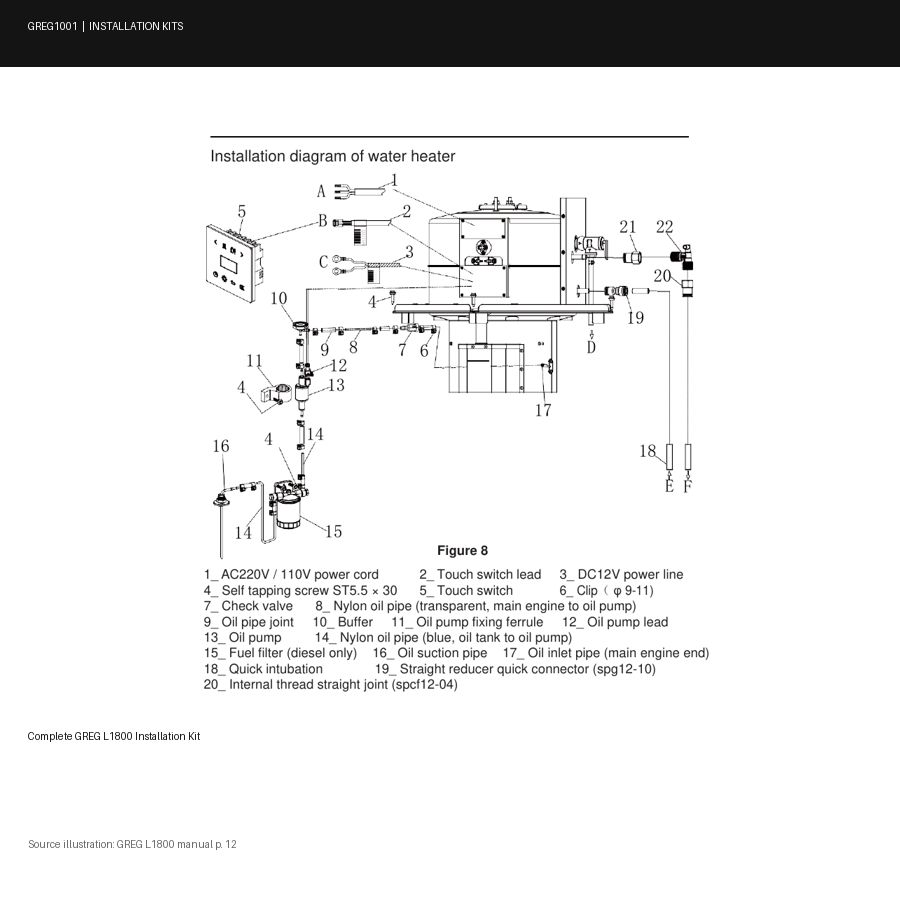

Kit photograph and manual reference illustration; confirm package contents.
L1800 Water Heater kit, 18 L Diesel + Electric 12V / 120V - Digital Control
SKU: GREG1001In Stock
System and model labels help you browse. Confirm fitment before ordering.
Contact usDescription
L1800 Water Heater kit, 18 L Diesel + Electric 12V / 120V - Digital Control. Hot-water production. Catalogue model references: L1800. Confirm the model, configuration and connections before ordering. The installation-parts reference also uses the name “Complete GREG L1800 Installation Kit”. Confirm whether this denotes the same package and which components are included.
Specifications
| SKU | GREG1001 |
|---|---|
| Category | Installation Kit |
| Browse by system | GREG · L1800 |
| Water capacity | 18 L |
| Energy modes | Diesel / Electric / Hybrid |
| Control | LCD touch-control architecture |
| High-altitude mode | Automatic plateau mode noted in catalog |
| Pressure protection | Automatic pressure release noted in catalog |
| Application | Domestic hot-water supply in mobile installations |
Installation
Prepare the opening: Compare the supplied template with the base and under-vehicle clearances. Check that the support is rigid and no pipes cross the cutting area.
Fit the protection plate: Clean and dry contact surfaces. Apply compatible sealant to the inside face of the plate. Position, press and secure it according to the kit instructions; protect cut edges.
Install the assembly: Position the water heater and burner without straining connections. Keep the safety valve and drain accessible. Keep combustion exhaust outside the occupied space.
Connect water: Connect cold inlet, hot outlet and safety discharge, supporting all pipes. The safety-valve discharge must remain unobstructed, slope downwards outdoors and be protected against freezing.
Fill and test: Fill with a hot-water tap open and inspect every joint. Connect DC and any mains supply according to the nameplate. Test the available modes and complete drainage before handover.
Operation & Maintenance
| Operation | Fill: Confirm the domestic-water tank is the 18 L version. Close the drain and fill from the cold-water system with a hot-water tap open until air is expelled. Check seals, the safety valve and its discharge pipe. |
|---|---|
| Operation | Heat: Use a mode compatible with the available energy sources. Before electric heating, verify voltage and power on the element nameplate; the L1800 model name alone does not establish voltage. Beware of scalding at the hot-water outlet. |
| Operation | Hygiene and maintenance: Use cleaning products and procedures compatible with tank materials. Only use a descaling procedure approved for the selected tank materials. Have the safety valve, supply, fittings and electrical connections checked. |
| Operation | Drain completely: Stop, allow cooling and open drains and taps to admit air. Verify the tank and low points actually empty. Never let the element heat dry on the next startup. |
| Maintenance | Before use, check power, fuel, ducts and leaks. After moving, inspect mounts and fittings. Before the season, perform a supervised test and inspect the circuit. Allow the shutdown cycle and cooling to finish before maintenance. Follow the variant’s manual for dismantling and intervals. |
Before You Buy
- Required use and output
- Voltage and fuel
- Available installation space
- Combustion intake and exhaust
- Compatible controller and required installation components
- Exact packing list
Questions & Answers
What does reference GREG1001 identify?
L1800 Water Heater kit, 18 L Diesel + Electric 12V / 120V - Digital Control. Hot-water production. Catalogue model references: L1800. Confirm the model, configuration and connections before ordering. The installation-parts reference also uses the name “Complete GREG L1800 Installation Kit”. Confirm whether this denotes the same package and which components are included.
What should I check for L1800 Water Heater kit, 18 L Diesel + Electric 12V / 120V - Digital Control?
Part reference and mounting interface. Catalogue associations are browsing references; confirm fitment for the delivered unit.
Warranty
Contact ATLOSON to confirm the applicable warranty for this reference. Burners are excluded from warranty coverage.
